Liftroller Wagon manual material handling trolley

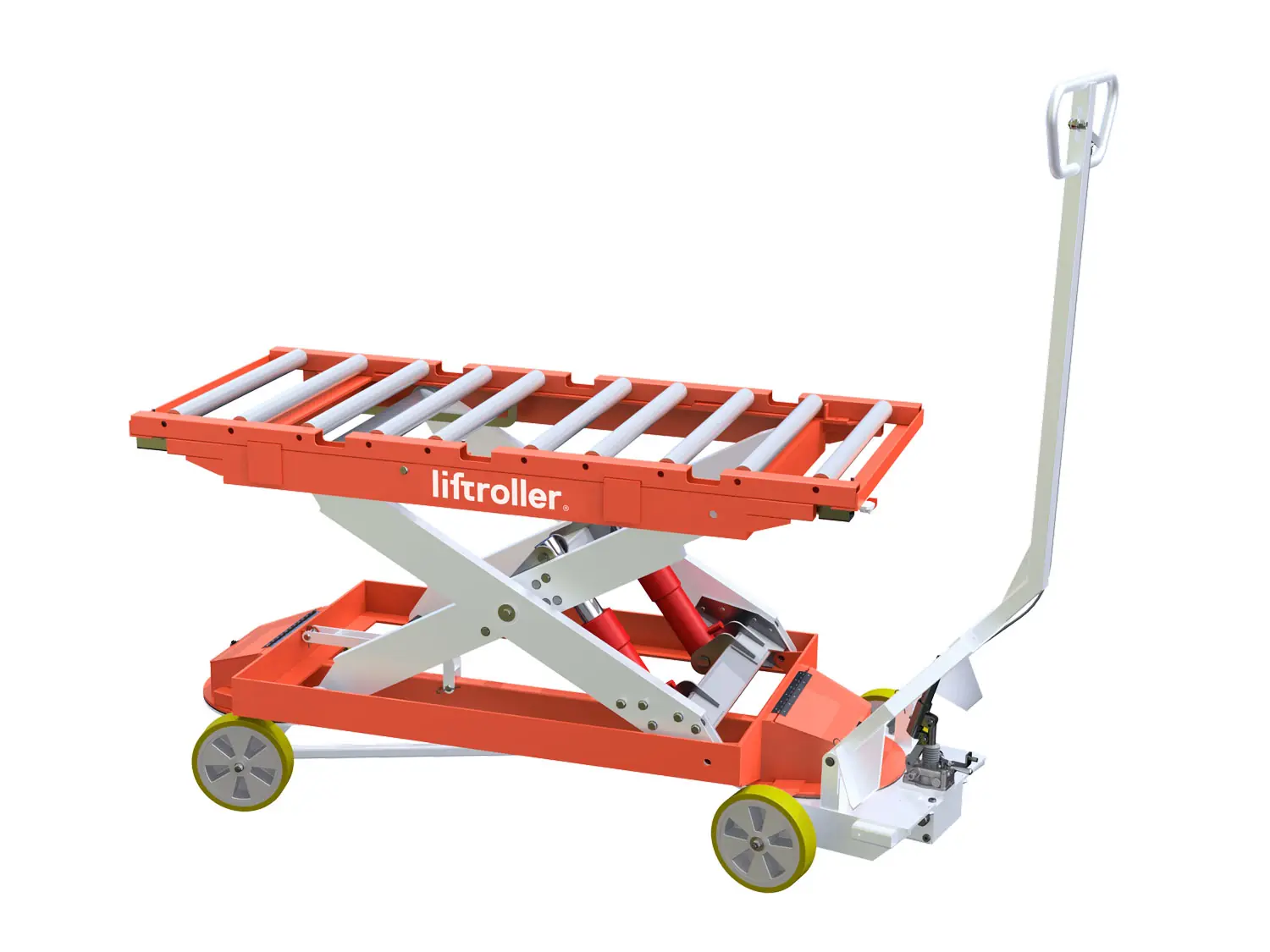

The Liftroller Wagon is a manual hydraulic goods trolley with a roller top, rated to 1,200 kg. It pumps from 525 mm up to 1,200 mm, which is high enough to meet the deck of a Liftroller Wall so packs roll straight across without being lifted.
1 / 5Talk to the team
Get pricing on the Liftroller Wagon
Tell us the floor levels, the openings you have and what you need to move. We'll come back with the right setup and what it costs.
A real reply, usually same day
Weekdays, from the team in Sydney. Not an autoresponder.
We'll tell you if it's the wrong fit
If another machine in the range suits your access better, we'll say so.
Under a minute to fill
Name, email and a number so we can call you back. Everything else is optional.
What the Liftroller Wagon does
The manual counterpart to the E Wagon. No battery, no charging, no remote: you pump it up and push it. On a lot of jobs that is exactly what is wanted, and it means one less thing to keep charged on a site with no power on the floor yet.
The important number is the 1,200 mm top height. Most goods trolleys do not lift that far, which means they cannot meet the deck of a landing platform and the load has to be lifted down onto them by hand. This one reaches, so the pack rolls across.
It has three trestle slots, so you can lower a pack onto trestles at working height and take the wagon away for the next delivery rather than leaving it parked under a load all morning.

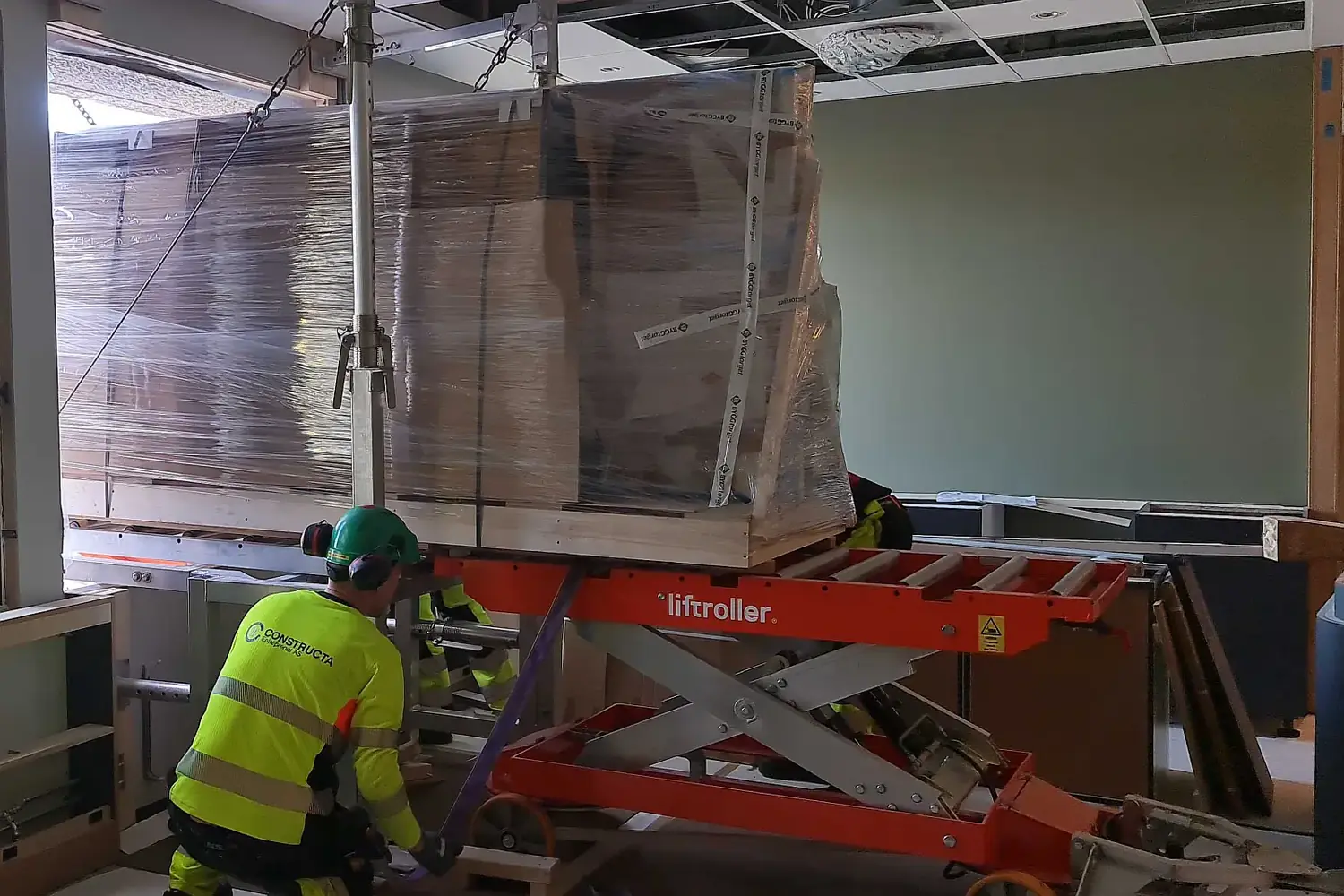

How it works on site
- 1
Pump it up to deck height
Manual hydraulics take the roller top to 1,200 mm to meet the platform.
- 2
Roll the pack across
The roller brake holds the load steady while it settles.
- 3
Wheel it out
Steering on both axles, so it turns in confined spaces.
- 4
Lower onto trestles
Three trestle slots let you set the pack down at working height and free the wagon up.
What it moves
The same job as the E Wagon, done manually. Nothing to charge, nothing to go flat.
- Plasterboard packs off the Wall
- Palletised tile and boxed goods
- Framing and timber
- Fitout materials on smaller jobs
By renting a Liftroller, you will quickly recover the cost, especially considering all the sick leave avoided. It is a win-win situation.
Technical specifications
Every figure below was verified against the manufacturer's Australian specification sheets in August 2026.
| Specification | Value |
|---|---|
| Minimum height trolley | 525 mm |
| Maximum height trolley | 1200 mm |
| Length of roller table | 1700 mm |
| Length of trolley (no handle) | 2019 mm |
| Length handle | 1037 mm |
| Width | 800 mm |
| Tare weight total | 230 kg |
| Max. weight load (WLL) | 1200 kg |
Key features
- Carries up to 1,200kg
- Manual hydraulic lift, 525 to 1,200mm
- Roller top pairs directly with the Liftroller Wall
- Three trestle slots to set packs down at working height
- Turns on both axles for confined spaces
- Breaks down into four portable parts, no tools
See it working
Got a question about your site?
Openings, floor levels, load weights: send us the details and we'll tell you straight whether the Liftroller Wagon is the right call.
Where it is used
Sites with no power
Nothing to charge, so it works from day one on a floor with no temporary supply.

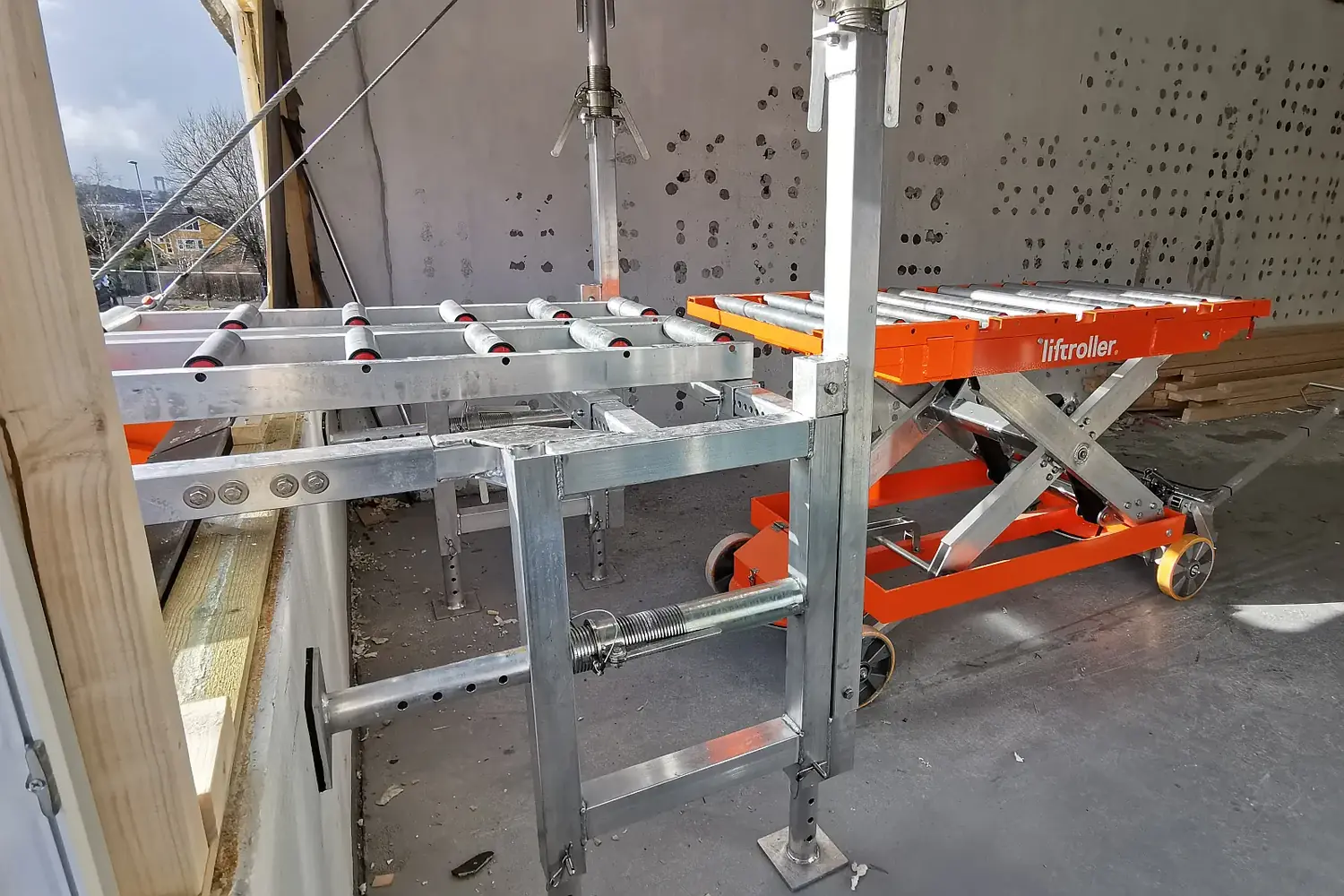

Pairing with the Wall
The 1,200 mm lift is what lets it meet the platform deck, which most trolleys cannot do.
Floors a machine cannot reach
It comes apart into four parts without tools, so it can be carried up and rebuilt on any level.
Smaller jobs
When the volume does not justify an electric wagon, this covers the same route.
Wagon or E Wagon
Both carry 1,200 kg on a roller top and both pair with the Liftroller Wall. One is pumped and pushed, the other drives itself.
This page
Liftroller Wagon
| Attribute | Liftroller Wagon | Liftroller E Wagon |
|---|---|---|
| Working load limit | 1,200 kg | 1,200 kg |
| Own weight | 230 kg | 570 kg |
| Power | Manual hydraulic | Electric, 230 V charge |
| Remote controlled | No | Yes |
| Deck height range | 525 to 1,200 mm | Matches the platform |
| Needs charging | No | Yes |
| Breaks into carryable parts | yes, four, no tools | No |
| Trestle slots | yes, three | Yes |
| Steers on both axles | Yes | Yes |
Choose Liftroller Wagon when
Shorter runs, moderate volume, or a floor with no power to charge anything.
Choose Liftroller E Wagon when
Long runs repeated all day, or heavy volume where pushing by hand adds up.
Want Liftroller Wagon pricing for your site?
Leave your details and we'll call you back with availability and what it costs for your job.
Working out whether it pays
The manual wagon is the lower-cost way into the system. Weigh it against the electric version on how far and how often you are moving loads.
Labour hours on material handling
Count the people and the hours currently spent carrying, and what those hours are worth on your rates. This is usually the biggest line by a distance.
Crane and hoist time
Every lift to ground level that then has to be moved again is a lift you paid for twice. Landing on the floor removes the second handling.
The goods lift
If materials are going up in the lift, other trades are waiting for it. Freeing the lift has a programme cost attached that rarely gets counted.
Rigging and ground space
External hoists and scaffold bays need somewhere to stand and something to tie to. On a tight site that space has a real cost, or does not exist at all.
Damage and rework
Carried materials get dropped, scuffed and cornered. Sheets rolling on a level bed do not.
Injury and lost time
Manual handling is one of the largest causes of lost-time injury in Australian construction. Fewer carried loads is fewer chances for a back injury on your job.
If the run is short and the volume is moderate, the Wagon usually covers it. If it is a long run repeated all day, look at the E Wagon.
Common questions
It is a manual hydraulic goods trolley with a roller top, rated to 1,200 kg, made to pair with the Liftroller Wall landing platform.
1,200 kg. The wagon itself weighs 230 kg.
From 525 mm up to 1,200 mm, on manual hydraulics. That is high enough to meet the deck of a Liftroller Wall.
The E Wagon is electric and remote-controlled. The Wagon is pumped and pushed by hand. Both carry 1,200 kg and both have roller tops.
Yes. It breaks down into four portable parts with no tools.
They let you lower a pack onto trestles at working height, so the wagon is free for the next delivery instead of sitting under the load.
Not covered here? Talk to our team and we will answer it against your actual site.
